Product Catalog

Toshiba inverter

  • Toshiba inverter
  • Toshiba inverter
Model No.︰VF-S11,VF-AS1
Brand Name︰Toshiba
Country of Origin︰Japan
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 2 Related Items
12Next
Auto next page:   SecondsPlay

Product Description
TOSHIBA inverter series (Catalogue list)
The TOSHIBA inverter drives 3 phase induction motor at any speed easily. The Toshiba inverter can be used for energy saving and the other various usages.

- Features of the TOSHIBA inverter
- Built-in noise filter (VF-AS1, VF-PS1, VF-FS1, VF-S11)
- Harmonics reduction (VF-AS1, VF-PS1 and all models of VF-FS1)
- Complied with UL, CE and CSA at all series
- Open field network
Note: Please refer each inverter series about details.


High Performance
TOSVERT VF-AS1

3ph 200V-0.4~75kW
3ph 400V-0.75~500kW
etc...
The VF-AS1 series performs all type of control from simple variable speed to vector control. With optional devices (enhanced I/O, open field network), this model can be used for system devices.


For fan and pump
TOSVERT VF-PS1

3ph 200V-0.4~90kW
3ph 400V-0.75~630kW
3ph 400V-0.75~90kW (IP54) etc...

The VF-PS1 series has built-in special softwares for fan and pump application. Moreover, there are wide capacity range, 630kW max. This model can be connected for building maintenance networks with optional cards.



For HVAC
TOSVERT VF-FS1

3ph 200V-0.4~30kW
3ph 400V-0.4~75kW
3ph 400V-0.75~75kW (IP54)

The VF-FS1 series performs 'reactor-less harmonics reduction' by TOSHIBA unique technologies. Moreover, the VF-FS1 series has special softwares for fan and pump application.



Compact

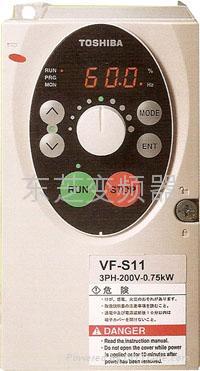

TOSVERT VF-S11

1ph 200V-0.2~2.2kW
3ph 200V-0.4~15kW
3ph 400V-0.4~15kW
etc...
The VF-S11 series is a easy-to-use inverter for a variety of machines and facilities. Moreover, the VF-S11 series has a line-up of IP54 series.






Compact, simple
TOSVERT VF-nC3

1ph 100V-0.1~0.75kW
1ph 200V-0.1~2.2kW
3ph 200V-0.1~3.7kW
Compact, simple
TOSVERT VF-nC1

1ph 100V-0.1~0.75kW
1ph 200V-0.2~2.2kW
3ph 200V-0.1~2.2kW


These series are a 'Compact' and 'Easy-to-Use' inverter for Small-Sized Machines! It is simple installation by 'the vertical contact-type main circuit terminal board' and 'captive screws'.



Optional devices

AC reactor
DC reactor
Braking resistor etc...

There are various optional devices for TOSHIBA inverters.
Harmonics reduction: AC reactor, DC reactor
Dynamic braking: Braking resistor
etc...



Others

TOSVERT VF-A7
TOSVERT VF-P7


End of sales

TOSVERT VF-S9
TOSVRET VF-S7
TOSVRET VF-S7e
TOSVERT VF-A5
TOSVERT VF-A5P etc...


Specifications︰VFS11S-2002PL VFS11S-2004PL VFS11S-2007PL VFS11S-2015PL VFS11S-2022PL VFS11-2004PM VFS11-2005PM VFS11-2007PM VFS11-2015PM VFS11-2022PM VFS11-2037PM VFS11-2055PM VFS11-2075PM VFS11-2110PM VFS11-2150PM VFS11-4004PL VFS11-4007PL VFS11-4015PL VFS11-4022PL VFS11-4037PL VFS11-4055PL VFS11-4075PL VFS11-4110PL VFS11-4150PL VFS11-6007P VFS11-6015P VFS11-6022P VFS11-6037P VFS11-6055P VFS11-6075P VFS11-6110P VFS11-6150P
Product Image



Related Products
TOSHIBA
TOSHIBA
